Sino Mould is the famous Chinese cap mould maker which specialized in producing water cap mould and bottle cap mould. We can offer you different kinds of plastic cap mould solutions, eg, automatic unscrewing ejection cap solution, bi-injection system cap solution, complex flip top cap solution and irregular shape design cap solution.

We have long history and rich experience in making bottle cap mold. With the advantage of Stavax S420 for core and cavity, P20 for mould base, our cap molds have the longer mould life and durability.

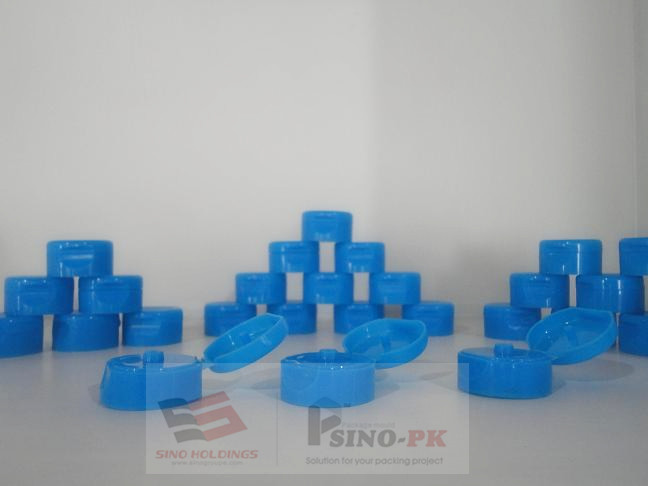

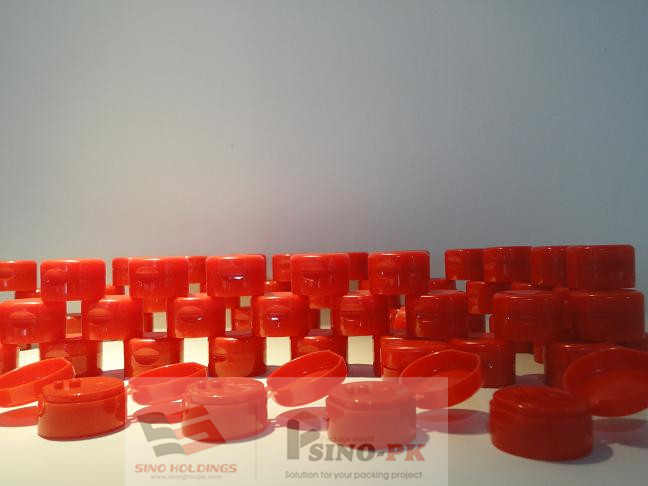

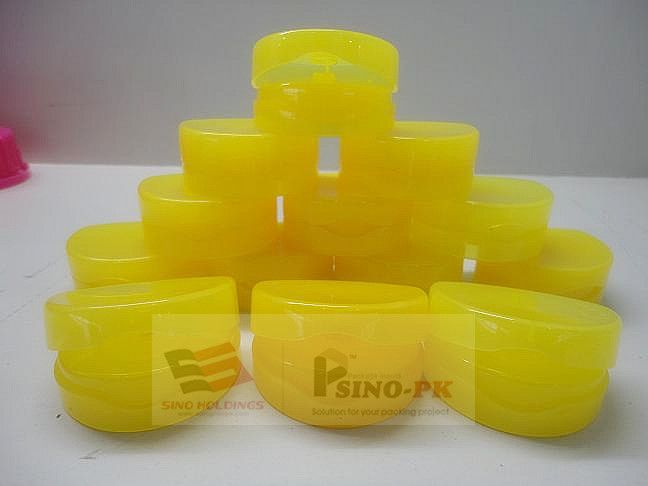

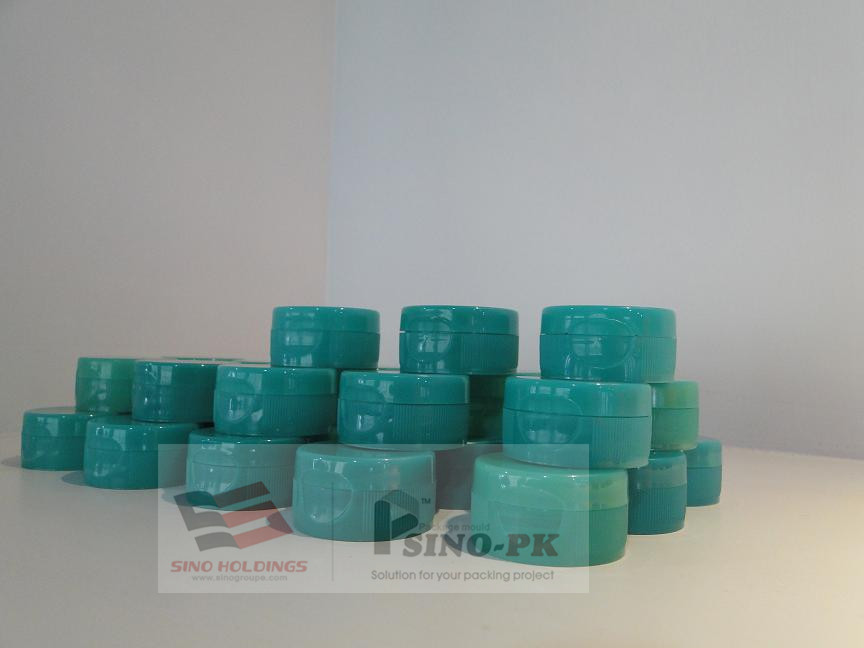

In order to become the biggest bottle cap mould maker in china, we devoted to keeping high quality in cap molds. Our flip-top cap mould used Stavax S420 stainless steel, tempered with HRC55+/-2 with maximum mould life. We also have various shape design and size for your special plastic cap mold demand.

Sino Mould is your best choice if you are looking for a credible cap mould company. We could offer you high quality and reasonable price mould.

Please contact us. We offer you not only a mould, but a fine solution…….

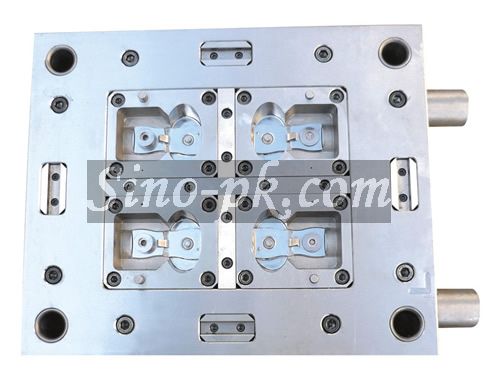

Mould Feature:

Mould Name :Flip Top Cap

Mould Cavity: 4 cavities

Injection Units: 4 Points Anole Hot Runner

Mould Size: 496*446*480mm

Cycle Time: 9s/stroke

Mould Life: 10 million shots

Mould Steel Material: Core & Cavity: Stavax S420, Mould Base: P20

Ejection: automatic flip top close, fully automatic drop




Bottle NeckPCO StandardPCO 1937mm-2-Start38mm-3-Start48mm 3-Start
 Art no.
Description
Seal Type
Safty Band
Components
Material
Slip Agent
 28/22/21/1
28mm/1-Star
Triple Seal
Drop Away
1
HDPE
With or Without
 28/22/17/1
28mm/1-Star
Triple Seal
Drop Away
1
HDPE
With or Without
 37/32/17/2
37mm/2-Star
Plug seal
Drop Away
1
HDPE
With or Without
 38/33/16/3
38mm/3-Star
Plug seal
Drop Away
1
HDPE
With or Without
 48/41/19/3
48mm/3-Star
Plug seal
Drop Away
1
HDPE
With or Without

 Bottle Neck 30/25 High
 PCO Standard 30/25 High 37mm2-start
  Art no.
Description
Seal Type
Safty Band
Components
Material
Slip Agent
 30/25/18/3
38mm/3-Star
Plug seal
Drop Away
1
HDPE
With or Without
 Tailor made dimension is available 28/22/21/1/Sport
28mm/1-Star
Plug seal
Drop Away
3
HDPE/LDPE/PP
With
 30/25/18/3/Sport
30mm/3-Star
Plug seal
Drop Away
3
HDPE/LDPE/PP
With
 37/32/17/2/Sport
37mm/2-Star
Plug seal
Drop Away
3
HDPE/LDPE/PP
With
