Chinese 48 cavities PET preform mould maker,48 cavities PET preform mold manufacturer
SINO PK has engaged in researching and delveloping PET preform mould manufacturing technology for decades.
In the past ten yearts, SINO PK has successfully researched and exported 32 cavities PET preform mould,36 cavities PET preform mould,48 cavities PET preform mould,68 cavities PET preform mould, 72 cavities PET preform mould, 96 cavities PET preform mould ,120 cavities PET preform mould etc. to our customer. and all the PET preform mould are run very well at the customer's factory. Meanwhile, our continuous effort help SINO PK gained our customer's deep trust.

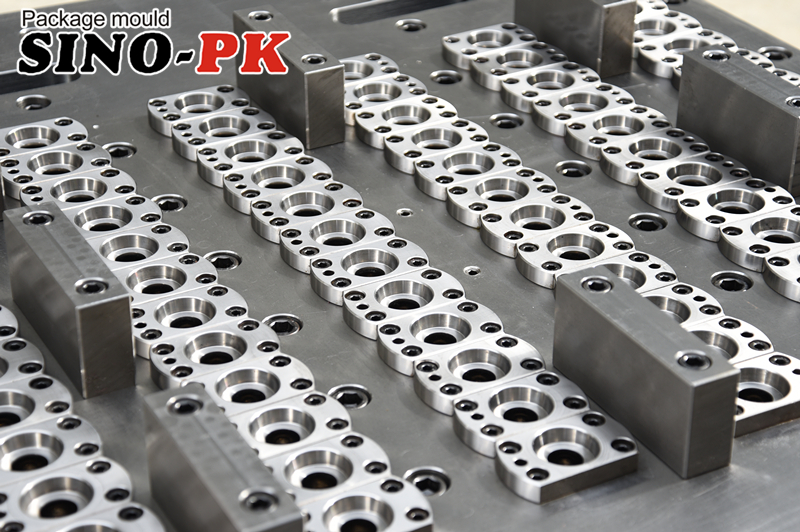

Below is one of SINO PK PET preform mould products .
Let me introduce our 48 cavities PET prefrom mould specification to you:
48 cavities PET preform mould cavity steel
Stavax S420 stainless steel ,tempered with HRC 50+/-2
48 cavities PET preform mould core steel
Stavax S420 stainless steel ,tempered with HRC 50+/-2
48 cavities PET preform mould neck screw steel
DIN 1.2083,with tempered HRC 45
48 cavities PET preform mould spare parts steel
Mould speare parts use DIN 1.2344 dimension measure up to D-M-E standard
48 cavities PET preform mould hot vavle gate
Hot manifold use DIN 1.2344 made in Thyssen Krupp German, with Anole-heat brand,original is German.
Hot nozzle are copper-Zn with HRC 37 to HRC 41
Heating elements use temperature controlling with each heating area separated controlled
48 cavities PET preform mould design
All the moving area was insert with durable parts which is interchaneable
2D drawing assembling drawing and part drawing available with shipment
48 cavities PET preform mould tooling spec.
Cooling system optimal cooling design and all the cooling system are Nickel plated
Ejection system auotomatic ejection system, Knock our bu machine and ejector return by machine
Polishing precision polishing until the core and cavity like the mirro
If you are interested in SINO PK PET preform mould, welcome to contact us!
We could offer you more detail information abour PET preform mould in SINO PK.
We are looking forward to work with you to create a better future together.
Contact person: Ms.Jessie
