Pet Preform mould



SINO-PK is the most famous PET preform mould manufacturers, more than ten years professional PET preform mold supplier in China.


SINO-PK is the most famous plastic PP, PE cap,closure mould manufacturer, has strong design ability and tooling technology.


SINO-PK
offer PET ,PE blowing bottle mould,PET ,PE blowing bottle mold,PET ,PE blowing bottle mould manufactures in China.

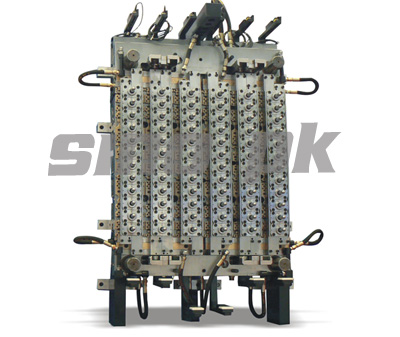

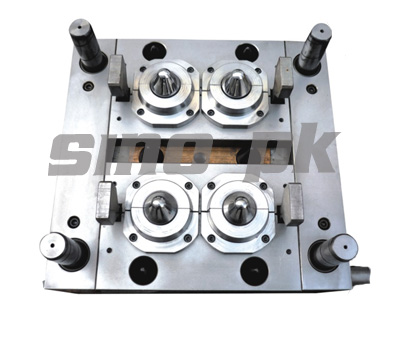

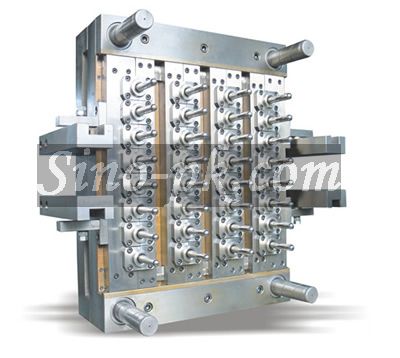

PET preform Mould

PET preform mould manufacturer---World Famous PET preform molding expert---SINOPK

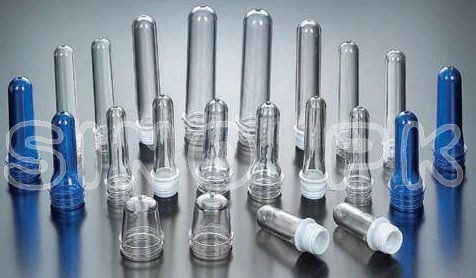

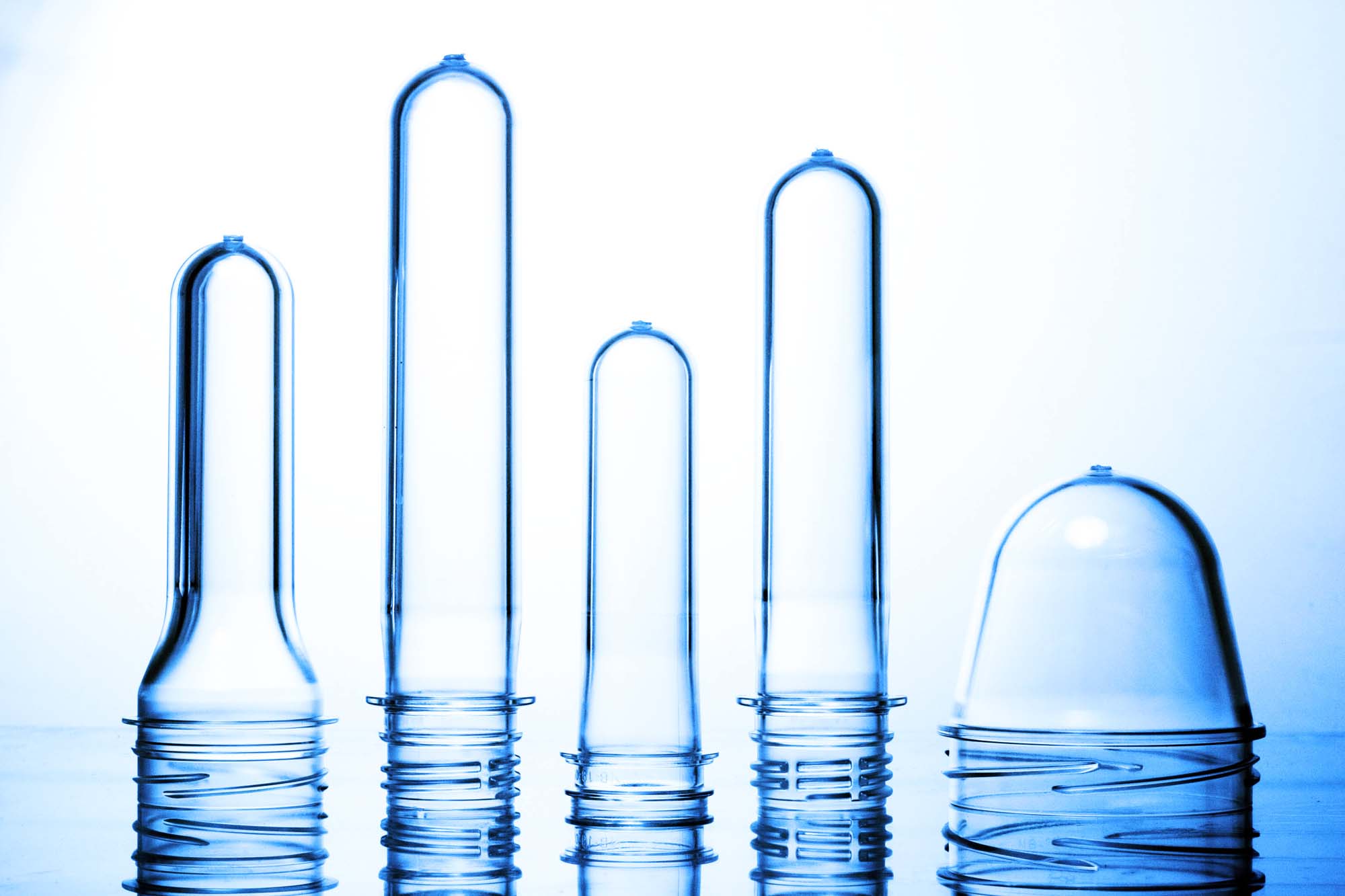

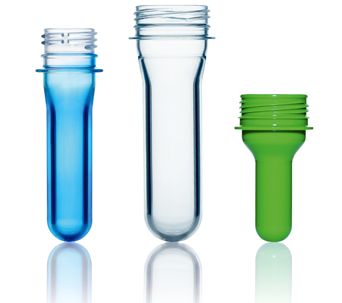

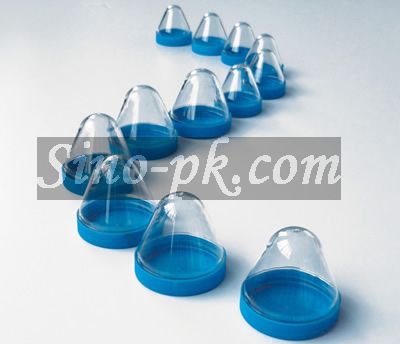

SINO-PK has successfully made 96 cavities of 26g PET preform mould in 2008, we are keeping on R & D for preform moulding technologies, we will be the most profesional packaging mould manufacturer in China. Annually, we made more than 600 sets of various preform mould such like 5 gallon preform mould, wide mouth preform mould...

PET_preform_mould Mould Feature:
 We can make 120 cavities so far.

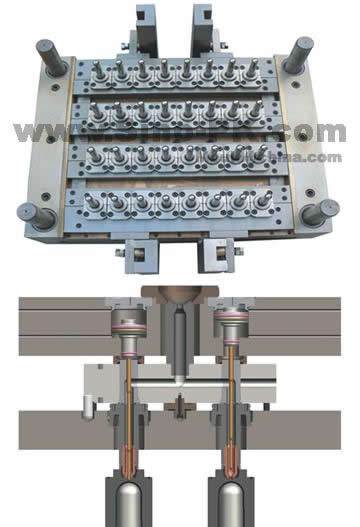

PET Preform mould with valve gate system
 Advanced hot runner system with German heating elements
1. Mould base steel: DIN 1.2311 with precision grinding machine with each plate thinckness tolerance 0.015mm for a plate size 500*500*40 with HRC 32.
2. Mould spare parts  DIN 1.2344 in D-M-E metric dimension  standard;all the moving area was inserted with durable parts which can be interchangeable;
3. Precision temperature controlling and even heating area for hot manifold;
4. Improved valve gate system with interchangeable and durable melt PET material sealing;

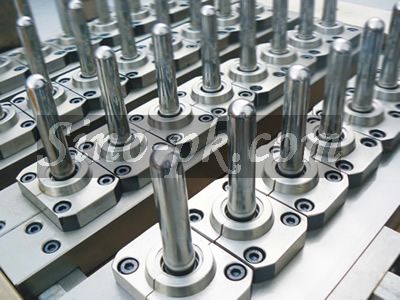

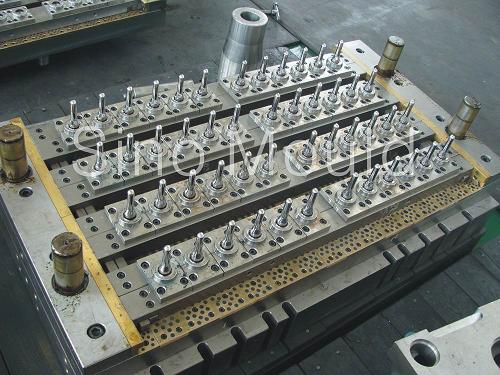

5. Cavity and core steel:Stavaxs420 stainless steel,tempered with HRC 55+/-2;

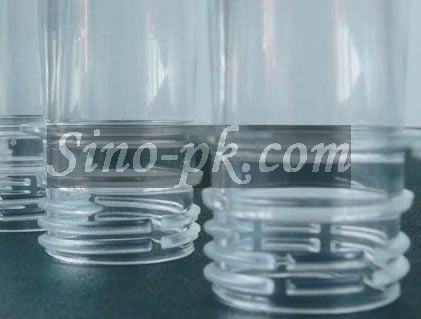

6. Screw neck slide inserted with prehardened DIN 1.2316,HRC 38 to HRC 42.

















Sino Package Mould-PET Preform Mould Specification

Cavity Length(mm) Width(mm) Thickness(mm) Weight(kg) Machine
4 450 240 460 350 50
6 650 240 460 550 88
8 560 400 480 800 138
10 630 400 500 950 188
12 680 400 500 1050 188
16 810 400 520 1300 268
24 670 600 550 1700 330
32 780 600 560 2000 380
48 1020 600 580 2700 500
56 1136 600 580 3050 500
72 1020 880 600 4200 650
96 1280 880 660 5700 780
120 1400 1048 680 7700 1080
128 1280 1160 680 7800 1080
