Mould Feature:
We can make 120 cavities so far.

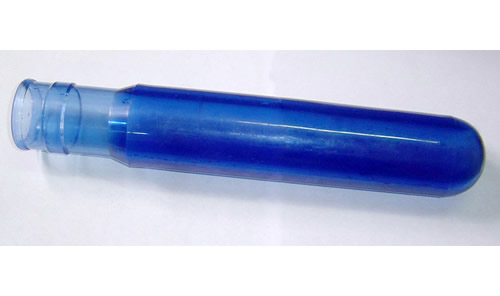

PET Preform mould with valve gate system
Advanced hot runner system with German heating elements
1. Mould base steel: DIN 1.2311 with precision grinding machine with each plate thinckness
tolerance 0.015mm for a plate size 500*500*40 with HRC 32.
2. Mould spare parts DIN 1.2344 in D-M-E metric dimension standard;all the moving area was inserted with durable parts which can be interchangeable;
3. Precision temperature controlling and even heating area for hot manifold;
4. Improved valve gate system with interchangeable and durable melt PET material sealing;
5. Cavity and core steel:Stavaxs420 stainless steel,tempered with HRC 55+/-2;

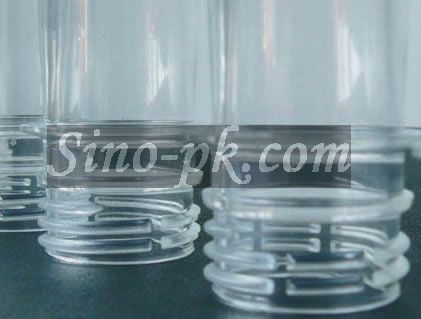

6. Screw neck slide inserted with prehardened DIN 1.2316,HRC 38 to HRC 42. |
| Sino Package Mould-PET Preform Mould Specification |
| Cavity |
Length(mm) |
Width(mm) |
Thickness(mm) |
Weight(kg) |
Machine |
| 4 |
450 |
240 |
460 |
350 |
50 |
| 6 |
650 |
240 |
460 |
550 |
88 |
| 8 |
560 |
400 |
480 |
800 |
138 |
| 10 |
630 |
400 |
500 |
950 |
188 |
| 12 |
680 |
400 |
500 |
1050 |
188 |
| 16 |
810 |
400 |
520 |
1300 |
268 |
| 24 |
670 |
600 |
550 |
1700 |
330 |
| 32 |
780 |
600 |
560 |
2000 |
380 |
| 48 |
1020 |
600 |
580 |
2700 |
500 |
| 56 |
1136 |
600 |
580 |
3050 |
500 |
| 72 |
1020 |
880 |
600 |
4200 |
650 |
| 96 |
1280 |
880 |
660 |
5700 |
780 |
| 120 |
1400 |
1048 |
680 |
7700 |
1080 |
| 128 |
1280 |
1160 |
680 |
7800 |
1080 |
|
|
