PET Preform Mould Innovation

SINO-PK has successfully made 96 cavities of 26g PET preform molds in 2008, we are keeping on R&D for preform molding technologies. Annually, we made more than 600 sets of various PET preform molds such like 5 gallon PET preform molds, wide mouth PET preform molds...

PET_preform_mould

PET Preform Molds Feature:

SINOPK can make 120 cavities so far.

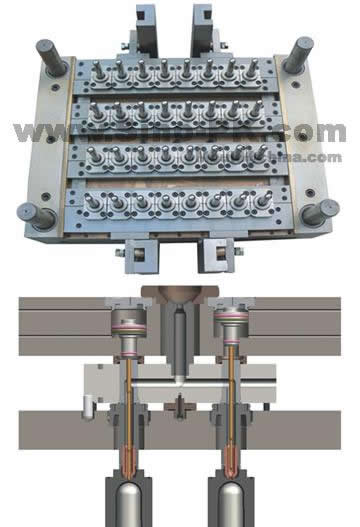

PET Preform mould with valve gate system, advanced hot runner system with German heating elements.

1. Mould base steel: DIN 1.2311 with precision grinding machine with each plate thickness tolerance 0.015mm for a plate size 500*500*40 with HRC 32.


2. Mould spare parts DIN 1.2344 in D-M-E metric dimension standard; all the moving area was inserted with durable parts which can be interchangeable;


3. Precision temperature controlling and even heating area for hot manifold;


4. Improved valve gate system with interchangeable and durable melt PET material sealing;


5. Cavity and core steel: Stavaxs420 stainless steel, tempered with HRC 55+/-2;


6. Screw neck slide inserted with prehardened DIN 1.2316, HRC 38 to HRC 42.




PET Preform Molds

PET mould_34
PET mould_34
PET mould_33
PET mould_33
PET mould_32
PET mould_32
PET mould_31
PET mould_31




PET Mould Products_30
PET Mould Products_30
PET Mould Products_29
pet product_57
pet product_57
PET Mould Products_28
PET Mould Products_28





PET Preform Molds Specification

CavityLength(mm)Width(mm)Thickness(mm)Weight(kg)Machine
445024046035050
665024046055088
8560400480800138
10630400500950188
126804005001050188
168104005201300268
246706005501700330
327806005602000380
4810206005802700500
5611366005803050500
7210208806004200650
9612808806605700780
1201400104868077001080
1281280116068078001080
