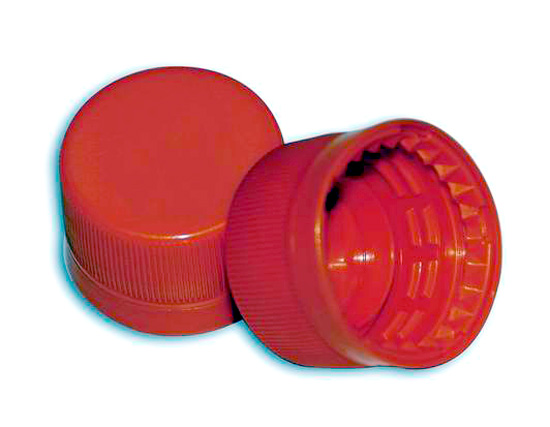

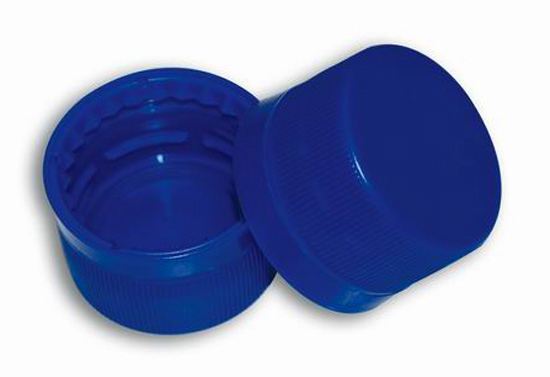

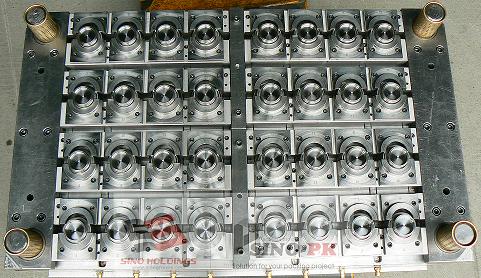

Standard cap mould, 28mm neck size cap mould

28mm neck size cap mold steel:

cap mould core:  STAVAX  S420 stainless steel, tempered with HRC 50+/-2

cap mould cavity: STAVAX  S420 stainless steel, tempered with HRC 50+/-2

cap mould base: SINO standard / LKM mould base

cap  mould spare parts steel: DIN 1.2344 dimension measure up to D-M-E matric standard


28mm neck size cap mould tooling:

SINO PK  use high precision tooling machine to machining every PET preform mould.

Fidia high speed CNC machine from Italy

Sodic high precision EDM and Wire cutting machine from Japan

Mazack  high performance lathe machine from Japan


28mm neck size cap  mould hot runner system:

Anole hot runner system


28mm neck size  mould design:

All the moving area was inserted with durable parts which is interchangeable

2D mould assembling drawing and part drawing available with shipment


If you are interested in 28mm neck size standard cap mould, please do not hesitate to call us or send you requirements via e-mail.
