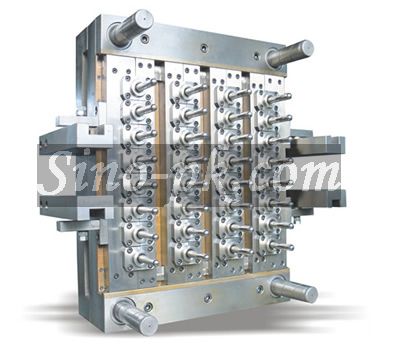

PET preform mould 32 cavities

PET preform mould steel

PET preform mould core steel: STAVAX  S420 stainless steel, tempered with HRC 50+/-2

PET preform mould cavity steel: STAVAX S420 stainless steel , tempered with HRC 50+/-2

PET preform mould neck screw steel : DIN 1.2083 with tempered HRC45

PET preform mould base steel: DIN 1. 2311 with grinding machine with each plate thickness tolerance 0.015mm for a plate size 500*500*40mm with HRC 32

PET preform mould spare parts steel: DIN 1.2344 dimension measure up to D-M-E matric standard


PET preform mould hot runner system

Anole hot runner system


PET preform mould design

all the moving area was inserted with durable parts which is interchangeable

2D mould assembling drawing and part drawing available with shipment


PET preform mould tooling

SINO pk use high precision tooling machine to machining every PET preform mould.

Fidia high speed CNC machine from Italy

Sodic high precision EDM and Wire cutting machine from Japan

Mazack  high performance lathe machine from Japan

Also we have a professional project manager to follow the whole project , control every tooling step for our customer.


If you are interested in PET preform mould, please do not hesitate to call us or send you requirements via e-mail.
